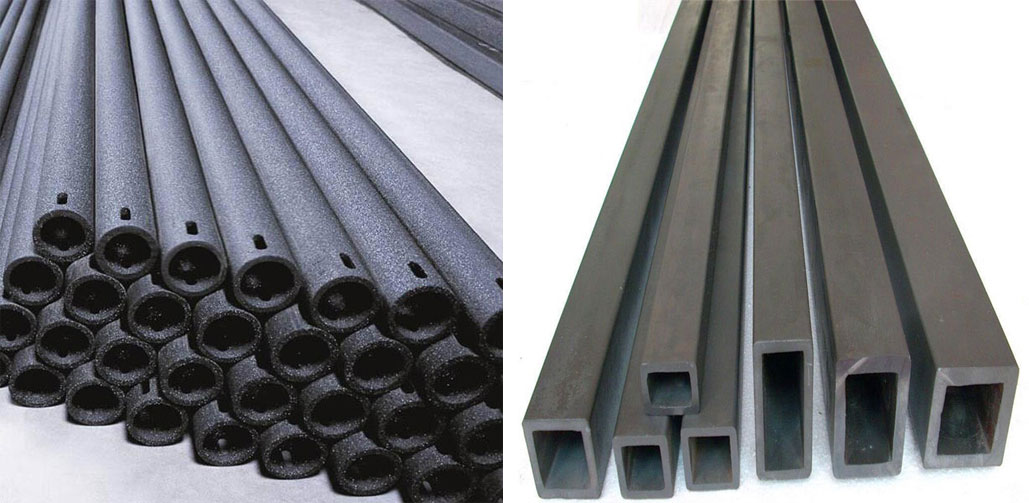

Recrystallized SiC is a fine grained, self-bonded silicon carbide composition.The manufacturing process includes shaping the parts by slip casting and firing the green body at a very high temperature of 2450 oC in a protective atmosphere.Products produced by this technic have the following advantages.
Typical Technical Data
|
SiC |
min. (%) |
99.5 |
|
Bulk Density |
g/cm3 |
2.7-2.8 |
|
Apparent Porosity |
max. (%) |
17 |
|
Compressive Strength (20oC) |
MPa |
300 |
|
Flexural Strength (20oC) |
min. (MPa) |
100 |
|
Flexural Strength (1400oC) |
min. (MPa) |
110 |
|
Thermal Expansion(1400oC) |
x10-6/oC |
4.80 |
|
Thermal Conductivity (1400oC) |
min. (W/m·K) |
23 |
|
Working Temperature |
max. (oC) |
1630 |
Note: Other chemical compositions are also available on request.
